#include <RTC8563_Class.hpp>

Inheritance diagram for m5::RTC8563_Class:

Collaboration diagram for m5::RTC8563_Class:

Public Member Functions
	RTC8563_Class (std::uint8_t i2c_addr=DEFAULT_ADDRESS, std::uint32_t freq=400000, I2C_Class *i2c=&In_I2C)

bool	begin (I2C_Class *i2c=nullptr)

bool	getVoltLow (void)

bool	getTime (rtc_time_t *time) const

bool	getDate (rtc_date_t *date) const

bool	getDateTime (rtc_datetime_t *datetime) const

void	setTime (const rtc_time_t &time)

void	setTime (const rtc_time_t *const time)

void	setDate (const rtc_date_t &date)

void	setDate (const rtc_date_t *const date)

void	setDateTime (const rtc_datetime_t &datetime)

void	setDateTime (const rtc_datetime_t *const datetime)

void	setDateTime (const tm *const datetime)

int	setAlarmIRQ (int afterSeconds)

int	setAlarmIRQ (const rtc_time_t &time)
	Set alarm by time. More...

int	setAlarmIRQ (const rtc_date_t &date, const rtc_time_t &time)

void	setSystemTimeFromRtc (struct timezone *tz=nullptr)

bool	getIRQstatus (void)

void	clearIRQ (void)

void	disableIRQ (void)

rtc_time_t	getTime (void) const

rtc_date_t	getDate (void) const

rtc_datetime_t	getDateTime (void) const

Public Member Functions inherited from m5::I2C_Device
	I2C_Device (std::uint8_t i2c_addr, std::uint32_t freq, I2C_Class *i2c=&In_I2C)

void	setPort (I2C_Class *i2c)

bool	writeRegister8 (std::uint8_t reg, std::uint8_t data) const

std::uint8_t	readRegister8 (std::uint8_t reg) const

bool	writeRegister8Array (const std::uint8_t *reg_data_array, std::size_t length) const

bool	writeRegister (std::uint8_t reg, const std::uint8_t *data, std::size_t length) const

bool	readRegister (std::uint8_t reg, std::uint8_t *result, std::size_t length) const

bool	bitOn (std::uint8_t reg, std::uint8_t bit) const

bool	bitOff (std::uint8_t reg, std::uint8_t bit) const

bool	isEnabled (void) const

Static Public Attributes
static constexpr std::uint8_t	DEFAULT_ADDRESS = 0x51

Additional Inherited Members
Protected Attributes inherited from m5::I2C_Device
I2C_Class *	_i2c

std::uint32_t	_freq

std::uint8_t	_addr

bool	_init

Detailed Description

Definition at line 80 of file RTC8563_Class.hpp.

Constructor & Destructor Documentation

◆ RTC8563_Class()

m5::RTC8563_Class::RTC8563_Class	(	std::uint8_t	i2c_addr = `DEFAULT_ADDRESS`,
		std::uint32_t	freq = `400000`,
		I2C_Class *	i2c = `&In_I2C`
	)

inline

Definition at line 85 of file RTC8563_Class.hpp.

Member Function Documentation

◆ begin()

bool m5::RTC8563_Class::begin ( I2C_Class * i2c = nullptr )

TimerCameraの内蔵RTCが初期化に失敗することがあったため、最初に空打ちする;

Definition at line 43 of file RTC8563_Class.cpp.

Here is the call graph for this function:

◆ clearIRQ()

void m5::RTC8563_Class::clearIRQ ( void )

Definition at line 258 of file RTC8563_Class.cpp.

Here is the call graph for this function:

◆ disableIRQ()

void m5::RTC8563_Class::disableIRQ ( void )

Definition at line 264 of file RTC8563_Class.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getDate() [1/2]

bool m5::RTC8563_Class::getDate ( rtc_date_t * date ) const

Definition at line 102 of file RTC8563_Class.cpp.

Here is the call graph for this function:

◆ getDate() [2/2]

rtc_date_t m5::RTC8563_Class::getDate ( void ) const

inline

Definition at line 136 of file RTC8563_Class.hpp.

◆ getDateTime() [1/2]

bool m5::RTC8563_Class::getDateTime ( rtc_datetime_t * datetime ) const

Definition at line 61 of file RTC8563_Class.cpp.

Here is the call graph for this function:

◆ getDateTime() [2/2]

rtc_datetime_t m5::RTC8563_Class::getDateTime ( void ) const

inline

Definition at line 143 of file RTC8563_Class.hpp.

Here is the caller graph for this function:

◆ getIRQstatus()

bool m5::RTC8563_Class::getIRQstatus ( void )

Definition at line 253 of file RTC8563_Class.cpp.

Here is the call graph for this function:

◆ getTime() [1/2]

bool m5::RTC8563_Class::getTime ( rtc_time_t * time ) const

Definition at line 80 of file RTC8563_Class.cpp.

Here is the call graph for this function:

◆ getTime() [2/2]

rtc_time_t m5::RTC8563_Class::getTime ( void ) const

inline

Definition at line 129 of file RTC8563_Class.hpp.

◆ getVoltLow()

bool m5::RTC8563_Class::getVoltLow ( void )

Definition at line 56 of file RTC8563_Class.cpp.

Here is the call graph for this function:

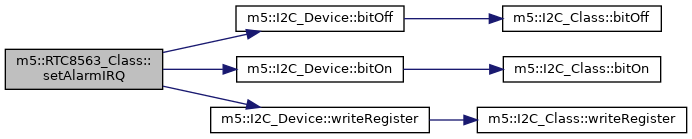

◆ setAlarmIRQ() [1/3]

int m5::RTC8563_Class::setAlarmIRQ	(	const rtc_date_t &	date,
		const rtc_time_t &	time
	)

Definition at line 206 of file RTC8563_Class.cpp.

Here is the call graph for this function:

◆ setAlarmIRQ() [2/3]

int m5::RTC8563_Class::setAlarmIRQ ( const rtc_time_t & time )

Set alarm by time.

Definition at line 173 of file RTC8563_Class.cpp.

Here is the call graph for this function:

◆ setAlarmIRQ() [3/3]

int m5::RTC8563_Class::setAlarmIRQ ( int afterSeconds )

Set timer IRQ

Parameters

afterSeconds 1 - 15,300. If 256 or more, 1-minute cycle. (max 255 minute.)

Returns: the set number of seconds.

Definition at line 141 of file RTC8563_Class.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setDate() [1/2]

void m5::RTC8563_Class::setDate ( const rtc_date_t & date )

weekDay auto adjust

Definition at line 116 of file RTC8563_Class.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setDate() [2/2]

void m5::RTC8563_Class::setDate ( const rtc_date_t *const date )

inline

Definition at line 101 of file RTC8563_Class.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setDateTime() [1/3]

void m5::RTC8563_Class::setDateTime ( const rtc_datetime_t & datetime )

inline

Definition at line 103 of file RTC8563_Class.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setDateTime() [2/3]

void m5::RTC8563_Class::setDateTime ( const rtc_datetime_t *const datetime )

inline

Definition at line 104 of file RTC8563_Class.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setDateTime() [3/3]

void m5::RTC8563_Class::setDateTime ( const tm *const datetime )

inline

Definition at line 105 of file RTC8563_Class.hpp.

Here is the call graph for this function:

◆ setSystemTimeFromRtc()

void m5::RTC8563_Class::setSystemTimeFromRtc ( struct timezone * tz = nullptr )

Definition at line 278 of file RTC8563_Class.cpp.

Here is the call graph for this function:

◆ setTime() [1/2]

void m5::RTC8563_Class::setTime ( const rtc_time_t & time )

Definition at line 92 of file RTC8563_Class.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setTime() [2/2]

void m5::RTC8563_Class::setTime ( const rtc_time_t *const time )

inline

Definition at line 98 of file RTC8563_Class.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ DEFAULT_ADDRESS

constexpr std::uint8_t m5::RTC8563_Class::DEFAULT_ADDRESS = 0x51

staticconstexpr

Definition at line 83 of file RTC8563_Class.hpp.

The documentation for this class was generated from the following files:

src/utility/RTC8563_Class.hpp
src/utility/RTC8563_Class.cpp
