M5Unified.hpp File Reference
#include "utility/m5unified_common.h"#include <M5GFX.h>#include "gitTagVersion.h"#include "utility/RTC8563_Class.hpp"#include "utility/AXP192_Class.hpp"#include "utility/IP5306_Class.hpp"#include "utility/Button_Class.hpp"#include "utility/Power_Class.hpp"#include "utility/Speaker_Class.hpp"#include "utility/Mic_Class.hpp"#include "utility/Touch_Class.hpp"#include "utility/Log_Class.hpp"#include "utility/IMU_Class.hpp"#include <memory>#include <vector>

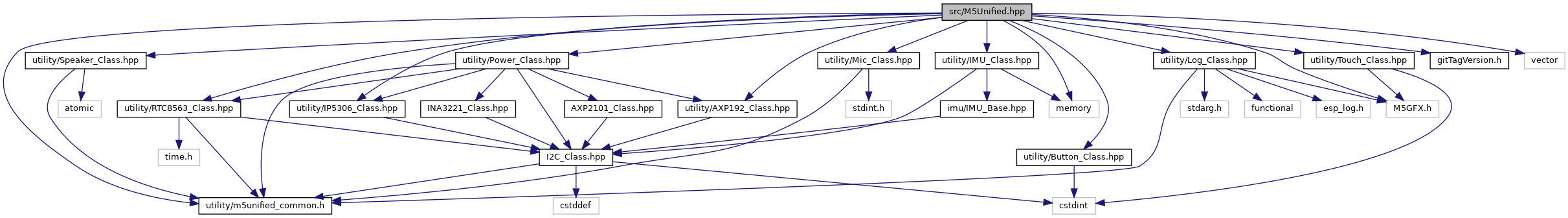

Include dependency graph for M5Unified.hpp:

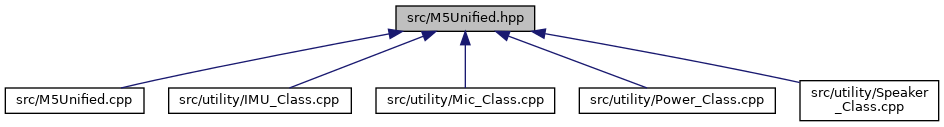

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| class | m5::M5Unified |
| struct | m5::M5Unified::config_t |
Namespaces | |
| m5 | |
Typedefs | |
| using | m5::board_t = m5gfx::board_t |
| using | m5::touch_point_t = m5gfx::touch_point_t |
| using | m5::touch_detail_t = Touch_Class::touch_detail_t |
Enumerations | |
| enum | m5::pin_name_t { m5::in_i2c_scl , m5::in_i2c_sda , m5::port_a_pin1 , m5::port_a_scl = port_a_pin1 , m5::ex_i2c_scl = port_a_pin1 , m5::port_a_pin2 , m5::port_a_sda = port_a_pin2 , m5::ex_i2c_sda = port_a_pin2 , m5::port_b_pin1 , m5::port_b_in = port_b_pin1 , m5::port_b_pin2 , m5::port_b_out = port_b_pin2 , m5::port_c_pin1 , m5::port_c_rxd = port_c_pin1 , m5::port_c_pin2 , m5::port_c_txd = port_c_pin2 , m5::port_d_pin1 , m5::port_d_rxd = port_d_pin1 , m5::port_b2_pin1 = port_d_pin1 , m5::port_d_pin2 , m5::port_d_txd = port_d_pin2 , m5::port_b2_pin2 = port_d_pin2 , m5::port_e_pin1 , m5::port_e_rxd = port_e_pin1 , m5::port_c2_pin1 = port_e_pin1 , m5::port_e_pin2 , m5::port_e_txd = port_e_pin2 , m5::port_c2_pin2 = port_e_pin2 , m5::sd_spi_sclk , m5::sd_spi_copi , m5::sd_spi_mosi = sd_spi_copi , m5::sd_spi_cipo , m5::sd_spi_miso = sd_spi_cipo , m5::sd_spi_cs , m5::sd_spi_ss = sd_spi_cs , m5::rgb_led , m5::pin_name_max } |
Variables | |
| m5::M5Unified | M5 |
| global instance. More... | |
Variable Documentation
◆ M5
|
extern |
global instance.
Definition at line 32 of file M5Unified.cpp.
